SSH keys
Remote connection to the server always requires client authentication so that unauthorized parties cannot gain access. The basic method of authentication is the use of a password. But passwords have one disadvantage - they can be cracked, especially if the server owner did not take care of password complexity.
For SSH connections to Linux servers, an alternative method is recommended - SSH keys authentication. These keys are a pair - a private key and a public key. The private key must be stored, respectively, in the client's private environment, and the public key is sent to the server and placed in the authorized_keys
file.
This method of authentication is not applicable to Windows servers, as RDP connection lacks such functionality.
The use of SSH keys is not a system requirement of Navixy platform, but is strongly recommended for server owners for security reasons.
Do not share private keys with anyone you do not trust. If you need to give access to your server to a third party, it is not necessary to share your own key. Instead, you can request their public key and add it to your server temporarily, then remove it once the work is done.
Creating SSH keys in Linux
If your workstation is using a Linux-based OS, then you need to use openssh package. It may be pre-installed or may require additional installation. On Ubuntu and Debian it is installed with this command:
apt -y install openssh-server
For other distros, the command may be different.
To start generating keys, run this command:
ssh-keygen

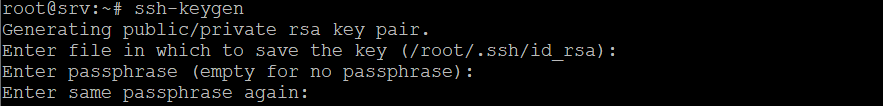

You will be prompted to enter the path of the file where the keys will be placed. You can leave the default location (in brackets) by pressing Enter, or specify a custom file location and name.
Next, you will be prompted to enter a passprase. It is an extra security measure to protect your key from usage by third parties in case it is compromised. This step is optional.
![image-20240214-122034.png](../__attachments/2511372318/image-20240214-122034.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)

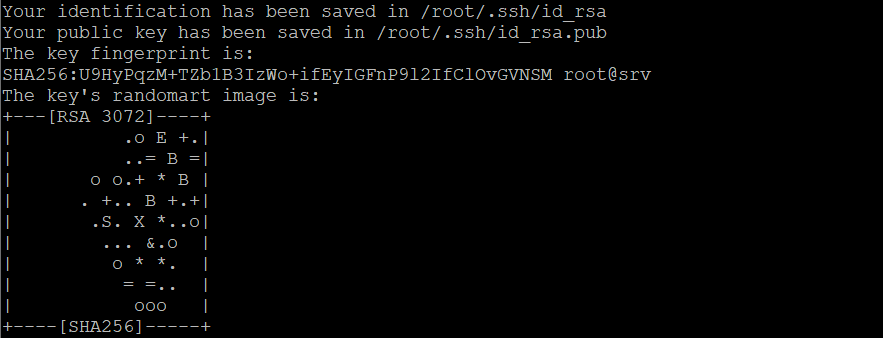

Once you have successfully generated a key pair, you will see a notification:
![image-20240214-122134.png](../__attachments/2511372318/image-20240214-122134.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)
With the default location, the public key is stored in /root/.ssh/id_rsa.pub
, and the private key is stored in /root/.ssh/id_rsa
.
Now you need to copy the public key to your server, in the directory of the user on whose behalf the remote connection will be made. Let's assume that the username is navixy
. Connect to your server and edit the file with any text editor, for example:
vi /home/navixy/.ssh/authorized_keys

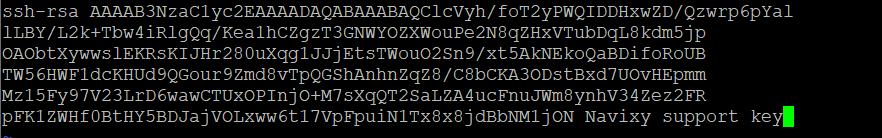

Specify your public key contents after ssh-rsa
. You can specify a short comment after the key to explain its purpose.
![image-20240214-124130.png](../__attachments/2511372318/image-20240214-124130.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)
Save the file.
You can now connect to the server using the newly created SSH key.
ssh -i id_rsa navixy@myserver.domain.com
After this, you can disable password authentication on your server.
Creating SSH keys in Windows
If you are using Windows, the most common client for connecting to a server via SSH is PuTTY. There are also many alternative clients, but they all basically serve the same purpose, so the choice is yours.
In Windows, SSH key generation is performed using PuTTYgen utility that comes with PuTTY installation package.

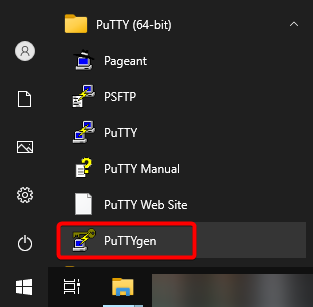

Launch PuTTYgen from the start menu.
![image-20240215-124950.png](../__attachments/2511372318/image-20240215-124950.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)

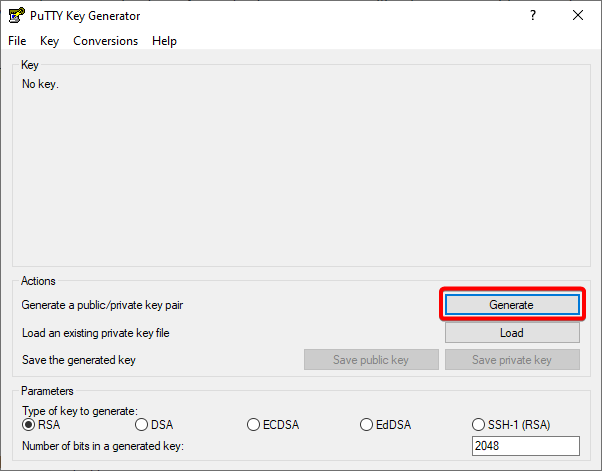

Make sure the RSA
key type is selected and click Generate.
![image-20240215-125643.png](../__attachments/2511372318/image-20240215-125643.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)
During the key generation process, swipe the mouse several times over an application window to create random values.
![image-20240215-125204.png](../__attachments/2511372318/image-20240215-125204.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)

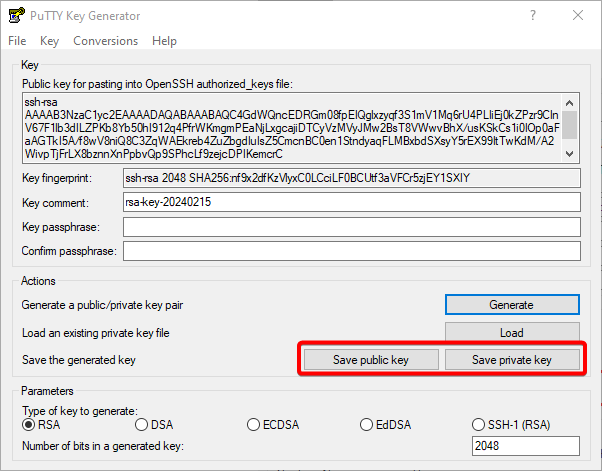

After key creation is complete, the public key will be displayed in PuTTYgen, and the private key will be stored in the application memory. To save these keys, click Save public key and Save private key. Specify the directory on your PC to store the key files.
![image-20240215-133332.png](../__attachments/2511372318/image-20240215-133332.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)
When saving private key, if Key passphrase
field is not filled in, you will be prompted "Are you sure you want to save this keywithout a passphrase to protect it?". Click Yes
or return to the previous window to specify the passphrase.
![image-20240215-133546.png](../__attachments/2511372318/image-20240215-133546.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)
Now the public key must be copied to your server into the authorized_keys
file. It is located in the directory of the user on whose behalf the remote connection will be made. Let's assume that the username is navixy
, and in this case the file location will be /home/navixy/.ssh/authorized_keys
.
Use any file transfer client to work with files on a remote Linux server. Here we will explain the process using WinSCP as the most popular client.

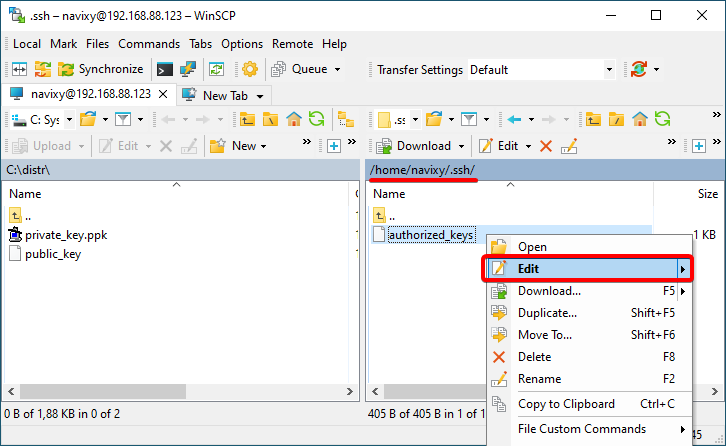

Open the authorized_keys
file via WinSCP for editing.
![image-20240215-140635.png](../__attachments/2511372318/image-20240215-140635.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)

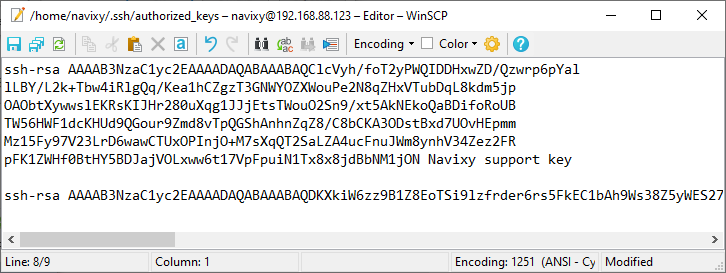

Copy the public key value from the PuTTYgen window or from the previously saved file. The key must stert with ssh-rsa
. If some key is already saved in the authorized_keys
file, append the new key after it, starting from a new line.
![image-20240215-141101.png](../__attachments/2511372318/image-20240215-141101.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)
Save the file.

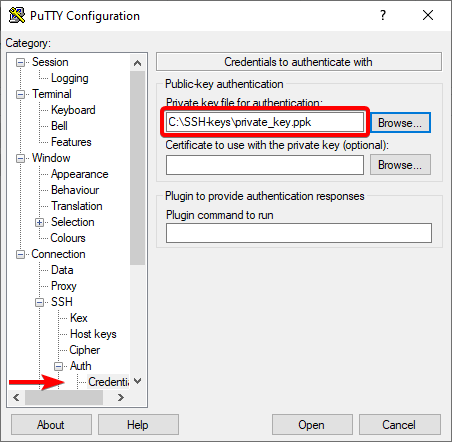

Now you can connect to your server via PuTTY using the private key file. You need to specify the path to it on your PC. To do this, select the required path in Connection - SSH - Auth - Credentials section (new version PuTTY) or Connection - SSH - Auth (old version), in Private key for authentication field.
![image-20240215-143917.png](../__attachments/2511372318/image-20240215-143917.png?inst-v=5e439b1e-17fe-45dc-9c84-c300c5b7637a)
Specify username and server address (e.g. navixy@myserver.domain.com
) in the Session tab and connect to your server. If everything is done correctly, the connection will be established without the need to enter a password.
SSH keys in cloud solutions
When you deploy a virtual machine to cloud services such as AWS, MS Azure and similar, you can issue an SSH key at the time you create the machine, or add an existing key if was already created before. When you do this, the cloud service will automatically insert the public key to the authorzed_keys
of the server user. All you need to do after the server has been deployed is to make an SSH connection using the private key.
Note: Although cloud platforms allow you to create SSH keys, they do not store the private part on their side. Once downloaded private key should be kept safe, because in case of loss access to the server will be impossible.
Disabling password authentication
Once you have successfully configured key authentication, you do not need to retain password authentication. For security reasons, you can disable it.
Connect to the server via SSH and open the sshd_config
file for editing, e.g. with Vi editor:
vi /etc/ssh/sshd_config
Find the parameter PasswordAuthentication
in the file and set it to no
:
PasswordAuthentication no
Save the file. Restart sshd service:
systemctl restart sshd
Now you can establish the remote connection to your server via SSH only using the previously added SSH key. Password authentication is disabled.
