Event configuration on Howen MDVR

Howen devices may provide ADAS, DMS and other events without video on the platform. Use the state field values alert to get notifications about these events. All event codes are available in two state fields:

sub_event_code to trigger ADAS, DMS and inputs triggering;
event_code to determine other device’s alerts.

Chose one of them as the state field input and corresponding codes from the next tables as expected values.

We didn’t change these code definitions a lot so they will be exactly the same or similar as described in Howen documentation.

Sub event codes

Input triggering codes

Code	Event
4_0	Close door
4_1	Emergency/Panic
4_2	F-door opening
4_3	M- door opening
4_4	B-door opening
4_5	Low beam
4_6	High beam
4_9	Right turn
4_10	Left turn
4_11	Braking
4_12	Reverse
4_13	Reservered 1
4_14	F-door close
4_15	M-Door Close
4_16	B-door close
4_17	Talking (start the intercom)
4_18	Raise up
4_19	Sealed
4_20	Load
4_22	Custom define

ADAS alarm codes

Code	Event
30_2	Lane departure warning
30_4	Pedestrian collision alarm
30_7	FVS：Front vehicle start
30_17	FCW：Forward collision warning
30_18	HMW：Headway monitoring warning

DMS alarm codes

Code	Event
30_33	Fatigue driving alarm
30_34	Phone call alarm
30_35	Smoking alarm
30_65	Eyes closed
30_66	Yawning
30_67	Camera cover
30_68	Distracted Driving
30_69	Seat belt not fastened
30_70	No driver
30_72	Driver shift
30_73	Driver back
30_80	Infrared sunglasses
30_81	Driver ID identified successfully
30_82	Driver ID identification failed

Event codes

List of codes

Code	Event
0	Unknown
1	Video lost
2	Motion detection
3	Video blind
4	Input trigger
5	Emergency alarm
6	Low speed alarm
7	Over speed alarm
8	Low temperature alarm
9	High temperature alarm
10	Humidity alarm
11	Parking over time
12	Acceleration alarm
13	GEO fencing
14	Electronic route
15	Abnormal open/close the door
16	Storage abnormal
17	fatigue driving
18	Fuel consumption abnormal
19	ACC off. (compatible with old firwmares. In old firmwares: During ACC-off delay, if ignites (et > st), will report “accoff ends”; in new firmware: During ACC-off delay, if ignites (et > st), will report “accon”)
20	GPS module abnormal
21	Front panel open
22	Swipe card
23	IButton
24	Harsh acceleration
25	Harsh braking
26	Low speed warning
27	High speed warning
28	Voltage alarm
29	People counting
30	DMS and ADAS alarm ((Driver monitoring system, and Advanced Drivign Assistant System)
31	"Acc on". Report once at boot
32	Idle
33	Gps antenna break
34	Gps antenna short
35	IO ouput
36	CAN bus connection abnormal
37	Towing
38	Free wheeling
39	RPM exceeds
40	Vehicle moves
41	Trip start (st/et/dtu time same）
42	In trip
43	Trip ends (periodical report after acc off)
44	GPS location recover
768	Trip notification
769	Upgrade notification

Live example

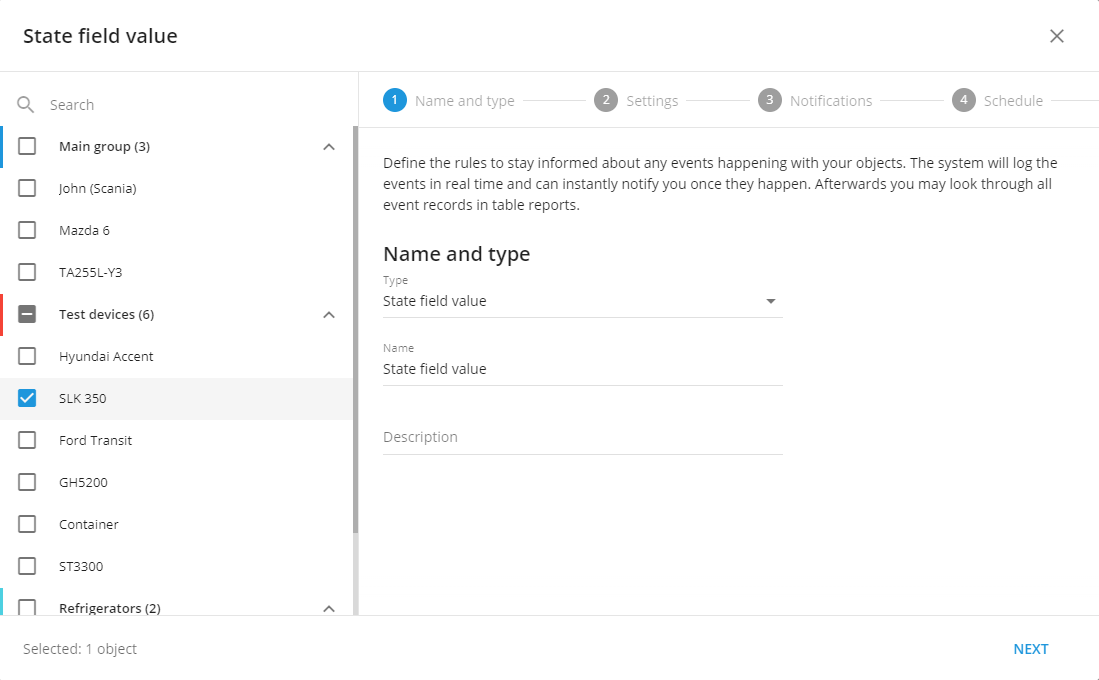

For example, if we want to get lane departure warning alerts, we should choose alert type State field value:

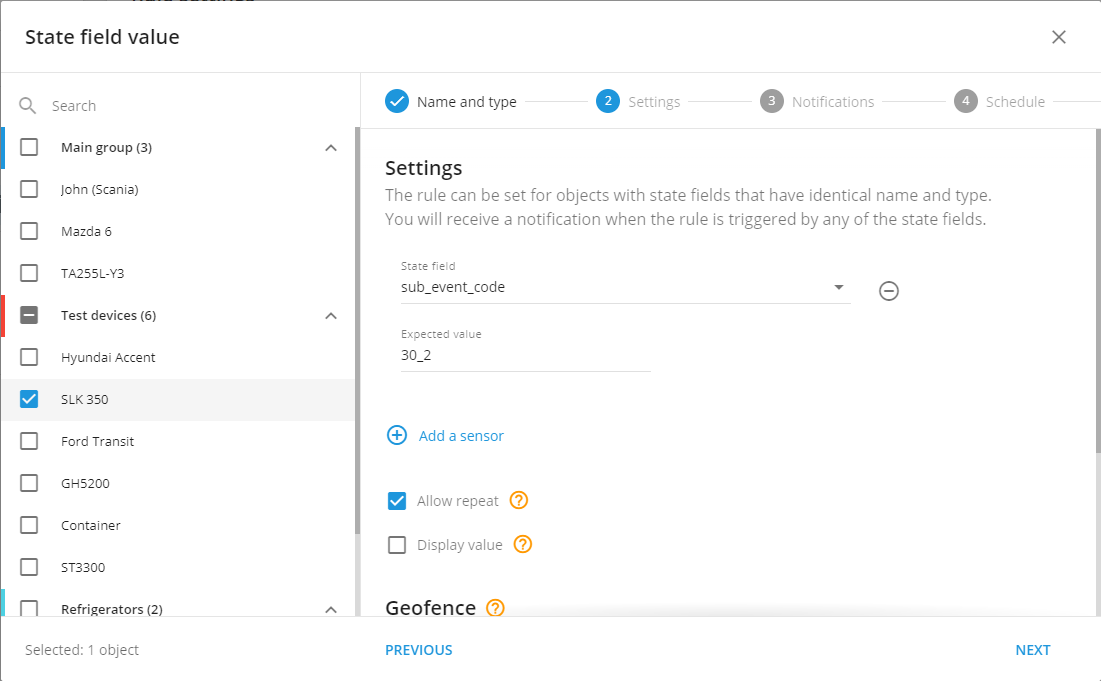

And in the settings tab we should use sub_event_code as the state field and 30_2 as an expected value:

Live example - State field and expected value settings

Once the device will provide a packet with sub event code 30_2, the platform will trigger an alert and notify you or your driver.
